1. Chemical and Structural Principles of Boron Carbide
1.1 Crystallography and Stoichiometric Irregularity

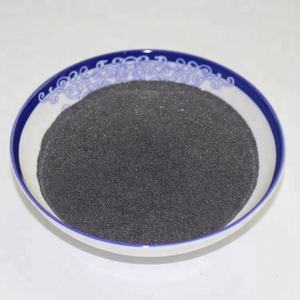

(Boron Carbide Podwer)
Boron carbide (B ₄ C) is a non-metallic ceramic compound renowned for its phenomenal hardness, thermal stability, and neutron absorption capability, placing it among the hardest known products– surpassed just by cubic boron nitride and diamond.
Its crystal structure is based on a rhombohedral latticework composed of 12-atom icosahedra (mainly B ₁₂ or B ₁₁ C) interconnected by linear C-B-C or C-B-B chains, creating a three-dimensional covalent network that imparts phenomenal mechanical toughness.
Unlike lots of ceramics with repaired stoichiometry, boron carbide shows a wide range of compositional adaptability, usually varying from B ₄ C to B ₁₀. THREE C, as a result of the alternative of carbon atoms within the icosahedra and architectural chains.
This variability affects vital homes such as solidity, electric conductivity, and thermal neutron capture cross-section, permitting building adjusting based upon synthesis problems and designated application.
The visibility of innate issues and condition in the atomic setup additionally adds to its one-of-a-kind mechanical behavior, consisting of a sensation referred to as “amorphization under anxiety” at high pressures, which can restrict performance in severe influence circumstances.
1.2 Synthesis and Powder Morphology Control
Boron carbide powder is largely generated with high-temperature carbothermal decrease of boron oxide (B ₂ O ₃) with carbon sources such as oil coke or graphite in electric arc heating systems at temperature levels in between 1800 ° C and 2300 ° C.
The reaction proceeds as: B ₂ O SIX + 7C → 2B FOUR C + 6CO, yielding crude crystalline powder that requires subsequent milling and filtration to attain penalty, submicron or nanoscale bits suitable for innovative applications.
Alternate methods such as laser-assisted chemical vapor deposition (CVD), sol-gel processing, and mechanochemical synthesis deal courses to higher pureness and regulated bit size distribution, though they are often restricted by scalability and expense.
Powder qualities– consisting of bit dimension, shape, agglomeration state, and surface area chemistry– are crucial criteria that influence sinterability, packing thickness, and final component efficiency.
As an example, nanoscale boron carbide powders show boosted sintering kinetics as a result of high surface power, enabling densification at reduced temperatures, but are susceptible to oxidation and require safety environments during handling and processing.
Surface area functionalization and covering with carbon or silicon-based layers are progressively employed to improve dispersibility and hinder grain development throughout debt consolidation.

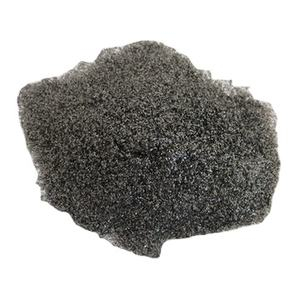

( Boron Carbide Podwer)
2. Mechanical Properties and Ballistic Performance Mechanisms
2.1 Hardness, Fracture Sturdiness, and Use Resistance
Boron carbide powder is the forerunner to among the most reliable lightweight armor products readily available, owing to its Vickers hardness of roughly 30– 35 GPa, which enables it to erode and blunt inbound projectiles such as bullets and shrapnel.
When sintered into thick ceramic tiles or integrated right into composite armor systems, boron carbide exceeds steel and alumina on a weight-for-weight basis, making it ideal for workers defense, car shield, and aerospace protecting.
However, despite its high firmness, boron carbide has relatively low fracture toughness (2.5– 3.5 MPa · m ¹ / TWO), rendering it susceptible to fracturing under localized impact or duplicated loading.
This brittleness is aggravated at high strain prices, where vibrant failure systems such as shear banding and stress-induced amorphization can result in devastating loss of architectural integrity.
Ongoing research study focuses on microstructural engineering– such as introducing additional phases (e.g., silicon carbide or carbon nanotubes), producing functionally graded composites, or making hierarchical designs– to mitigate these restrictions.
2.2 Ballistic Power Dissipation and Multi-Hit Capacity
In personal and car armor systems, boron carbide ceramic tiles are usually backed by fiber-reinforced polymer compounds (e.g., Kevlar or UHMWPE) that take in residual kinetic power and have fragmentation.
Upon influence, the ceramic layer fractures in a controlled way, dissipating energy with systems including bit fragmentation, intergranular splitting, and phase makeover.
The great grain structure derived from high-purity, nanoscale boron carbide powder enhances these energy absorption processes by raising the thickness of grain borders that restrain crack proliferation.
Current innovations in powder handling have led to the advancement of boron carbide-based ceramic-metal composites (cermets) and nano-laminated structures that enhance multi-hit resistance– a critical need for army and police applications.
These engineered products keep safety performance also after first effect, dealing with a key constraint of monolithic ceramic shield.
3. Neutron Absorption and Nuclear Design Applications
3.1 Interaction with Thermal and Quick Neutrons
Beyond mechanical applications, boron carbide powder plays an essential role in nuclear modern technology as a result of the high neutron absorption cross-section of the ¹⁰ B isotope (3837 barns for thermal neutrons).
When incorporated into control poles, protecting materials, or neutron detectors, boron carbide effectively manages fission responses by recording neutrons and going through the ¹⁰ B( n, α) ⁷ Li nuclear response, creating alpha fragments and lithium ions that are conveniently consisted of.
This residential property makes it crucial in pressurized water activators (PWRs), boiling water activators (BWRs), and research study reactors, where precise neutron change control is necessary for secure operation.
The powder is frequently made into pellets, layers, or distributed within steel or ceramic matrices to form composite absorbers with tailored thermal and mechanical residential properties.
3.2 Security Under Irradiation and Long-Term Performance
An important advantage of boron carbide in nuclear settings is its high thermal security and radiation resistance approximately temperature levels exceeding 1000 ° C.
However, long term neutron irradiation can result in helium gas buildup from the (n, α) response, causing swelling, microcracking, and destruction of mechanical integrity– a sensation called “helium embrittlement.”
To minimize this, researchers are creating drugged boron carbide formulas (e.g., with silicon or titanium) and composite designs that fit gas launch and keep dimensional stability over extended service life.
In addition, isotopic enrichment of ¹⁰ B boosts neutron capture efficiency while lowering the total product quantity called for, improving activator style adaptability.
4. Emerging and Advanced Technological Integrations
4.1 Additive Manufacturing and Functionally Graded Parts
Recent progress in ceramic additive production has enabled the 3D printing of complicated boron carbide components utilizing strategies such as binder jetting and stereolithography.
In these procedures, great boron carbide powder is uniquely bound layer by layer, complied with by debinding and high-temperature sintering to attain near-full thickness.
This capacity allows for the fabrication of tailored neutron securing geometries, impact-resistant latticework frameworks, and multi-material systems where boron carbide is integrated with steels or polymers in functionally rated styles.
Such styles optimize performance by incorporating hardness, toughness, and weight effectiveness in a single component, opening up new frontiers in defense, aerospace, and nuclear engineering.
4.2 High-Temperature and Wear-Resistant Commercial Applications
Beyond protection and nuclear industries, boron carbide powder is used in unpleasant waterjet cutting nozzles, sandblasting liners, and wear-resistant finishes as a result of its extreme hardness and chemical inertness.
It outperforms tungsten carbide and alumina in erosive settings, particularly when exposed to silica sand or other hard particulates.
In metallurgy, it functions as a wear-resistant liner for receptacles, chutes, and pumps dealing with unpleasant slurries.
Its reduced density (~ 2.52 g/cm ³) further boosts its allure in mobile and weight-sensitive commercial equipment.
As powder top quality boosts and handling technologies development, boron carbide is positioned to increase right into next-generation applications consisting of thermoelectric products, semiconductor neutron detectors, and space-based radiation shielding.
To conclude, boron carbide powder stands for a foundation material in extreme-environment design, combining ultra-high solidity, neutron absorption, and thermal strength in a solitary, functional ceramic system.
Its duty in guarding lives, allowing nuclear energy, and advancing industrial performance underscores its critical value in modern-day technology.
With continued innovation in powder synthesis, microstructural design, and producing combination, boron carbide will continue to be at the leading edge of advanced products growth for decades to come.
