Alumina Ceramic Rings: Engineering Precision and Performance in Advanced Industrial Applications alumina to aluminum
1. The Science and Structure of Alumina Porcelain Materials
1.1 Crystallography and Compositional Variants of Aluminum Oxide

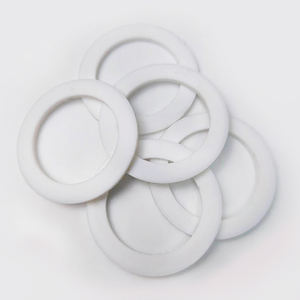

(Alumina Ceramics Rings)
Alumina ceramic rings are made from aluminum oxide (Al ₂ O FOUR), a compound renowned for its exceptional balance of mechanical strength, thermal stability, and electric insulation.
The most thermodynamically steady and industrially relevant phase of alumina is the alpha (α) phase, which crystallizes in a hexagonal close-packed (HCP) structure belonging to the diamond family members.
In this setup, oxygen ions form a dense lattice with light weight aluminum ions occupying two-thirds of the octahedral interstitial sites, leading to a highly secure and robust atomic framework.
While pure alumina is theoretically 100% Al ₂ O TWO, industrial-grade products frequently have tiny percents of ingredients such as silica (SiO ₂), magnesia (MgO), or yttria (Y ₂ O TWO) to control grain development throughout sintering and improve densification.
Alumina ceramics are identified by purity degrees: 96%, 99%, and 99.8% Al Two O three are common, with greater purity associating to enhanced mechanical residential properties, thermal conductivity, and chemical resistance.
The microstructure– especially grain dimension, porosity, and phase distribution– plays a vital function in identifying the last performance of alumina rings in service environments.
1.2 Secret Physical and Mechanical Residence
Alumina ceramic rings display a suite of properties that make them essential in demanding commercial setups.
They have high compressive stamina (up to 3000 MPa), flexural strength (usually 350– 500 MPa), and excellent hardness (1500– 2000 HV), making it possible for resistance to use, abrasion, and deformation under lots.
Their low coefficient of thermal development (approximately 7– 8 × 10 ⁻⁶/ K) makes sure dimensional stability across large temperature ranges, minimizing thermal tension and cracking during thermal biking.
Thermal conductivity arrays from 20 to 30 W/m · K, relying on purity, permitting modest heat dissipation– adequate for many high-temperature applications without the requirement for active cooling.

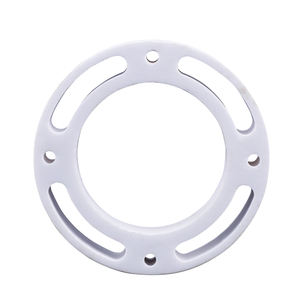

( Alumina Ceramics Ring)
Electrically, alumina is an outstanding insulator with a quantity resistivity going beyond 10 ¹⁴ Ω · centimeters and a dielectric stamina of around 10– 15 kV/mm, making it excellent for high-voltage insulation components.
In addition, alumina shows excellent resistance to chemical assault from acids, alkalis, and molten metals, although it is vulnerable to attack by solid alkalis and hydrofluoric acid at elevated temperatures.
2. Production and Precision Design of Alumina Bands
2.1 Powder Processing and Shaping Strategies
The manufacturing of high-performance alumina ceramic rings starts with the selection and preparation of high-purity alumina powder.
Powders are generally manufactured by means of calcination of aluminum hydroxide or with progressed approaches like sol-gel handling to attain fine particle dimension and narrow dimension distribution.
To form the ring geometry, numerous forming methods are employed, consisting of:
Uniaxial pushing: where powder is compressed in a die under high stress to create a “eco-friendly” ring.
Isostatic pushing: using uniform stress from all directions utilizing a fluid tool, causing higher thickness and even more uniform microstructure, particularly for complicated or large rings.
Extrusion: appropriate for lengthy round forms that are later on cut into rings, often used for lower-precision applications.
Shot molding: made use of for elaborate geometries and tight tolerances, where alumina powder is blended with a polymer binder and injected right into a mold and mildew.
Each approach influences the final thickness, grain placement, and issue distribution, requiring mindful procedure choice based upon application needs.
2.2 Sintering and Microstructural Development
After forming, the eco-friendly rings go through high-temperature sintering, commonly in between 1500 ° C and 1700 ° C in air or managed atmospheres.
Throughout sintering, diffusion mechanisms drive bit coalescence, pore removal, and grain development, causing a completely thick ceramic body.
The rate of heating, holding time, and cooling down account are specifically controlled to avoid cracking, warping, or overstated grain development.
Additives such as MgO are commonly presented to inhibit grain border movement, causing a fine-grained microstructure that boosts mechanical stamina and dependability.
Post-sintering, alumina rings may go through grinding and washing to achieve tight dimensional tolerances ( ± 0.01 mm) and ultra-smooth surface finishes (Ra < 0.1 µm), critical for securing, birthing, and electric insulation applications.
3. Useful Efficiency and Industrial Applications
3.1 Mechanical and Tribological Applications
Alumina ceramic rings are commonly used in mechanical systems because of their wear resistance and dimensional stability.
Key applications consist of:
Sealing rings in pumps and shutoffs, where they withstand erosion from unpleasant slurries and destructive liquids in chemical handling and oil & gas sectors.
Bearing parts in high-speed or destructive atmospheres where metal bearings would certainly degrade or require regular lubrication.
Overview rings and bushings in automation equipment, offering reduced friction and lengthy service life without the requirement for oiling.
Put on rings in compressors and generators, lessening clearance in between rotating and fixed components under high-pressure conditions.
Their ability to maintain efficiency in completely dry or chemically aggressive environments makes them superior to several metal and polymer options.
3.2 Thermal and Electrical Insulation Duties
In high-temperature and high-voltage systems, alumina rings function as vital insulating elements.
They are used as:
Insulators in heating elements and furnace elements, where they sustain repellent wires while withstanding temperature levels above 1400 ° C.
Feedthrough insulators in vacuum and plasma systems, preventing electrical arcing while maintaining hermetic seals.
Spacers and support rings in power electronic devices and switchgear, isolating conductive components in transformers, circuit breakers, and busbar systems.
Dielectric rings in RF and microwave tools, where their reduced dielectric loss and high failure stamina make certain signal integrity.
The combination of high dielectric strength and thermal stability permits alumina rings to function reliably in atmospheres where organic insulators would weaken.
4. Material Innovations and Future Outlook
4.1 Composite and Doped Alumina Solutions
To further enhance efficiency, researchers and suppliers are developing sophisticated alumina-based composites.
Examples consist of:
Alumina-zirconia (Al ₂ O FOUR-ZrO ₂) composites, which display enhanced crack sturdiness with change toughening systems.
Alumina-silicon carbide (Al two O ₃-SiC) nanocomposites, where nano-sized SiC fragments enhance firmness, thermal shock resistance, and creep resistance.
Rare-earth-doped alumina, which can modify grain boundary chemistry to boost high-temperature stamina and oxidation resistance.
These hybrid products extend the functional envelope of alumina rings right into even more extreme problems, such as high-stress dynamic loading or rapid thermal cycling.
4.2 Arising Fads and Technological Integration
The future of alumina ceramic rings hinges on wise combination and precision production.
Trends include:
Additive manufacturing (3D printing) of alumina parts, allowing complicated interior geometries and personalized ring styles formerly unreachable via traditional methods.
Practical grading, where composition or microstructure differs throughout the ring to maximize performance in different zones (e.g., wear-resistant outer layer with thermally conductive core).
In-situ tracking using embedded sensing units in ceramic rings for predictive upkeep in industrial machinery.
Raised usage in renewable resource systems, such as high-temperature fuel cells and concentrated solar power plants, where material reliability under thermal and chemical stress is extremely important.
As markets require higher efficiency, longer lifespans, and lowered maintenance, alumina ceramic rings will certainly continue to play a critical role in making it possible for next-generation design services.
