Alumina Ceramic Substrates: The Foundational Enablers of High-Performance Electronic Packaging and Microsystem Integration in Modern Technology alumina technologies inc
1. Product Principles and Structural Qualities of Alumina Ceramics
1.1 Crystallographic and Compositional Basis of α-Alumina

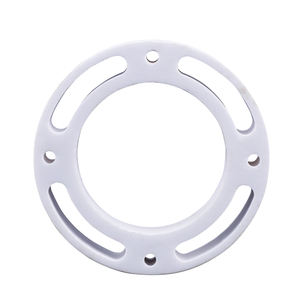

(Alumina Ceramic Substrates)
Alumina ceramic substratums, largely composed of light weight aluminum oxide (Al ₂ O SIX), act as the backbone of modern-day electronic product packaging as a result of their outstanding equilibrium of electrical insulation, thermal stability, mechanical strength, and manufacturability.
One of the most thermodynamically secure phase of alumina at high temperatures is diamond, or α-Al ₂ O SIX, which takes shape in a hexagonal close-packed oxygen latticework with aluminum ions occupying two-thirds of the octahedral interstitial websites.
This dense atomic arrangement imparts high hardness (Mohs 9), excellent wear resistance, and strong chemical inertness, making α-alumina suitable for severe operating environments.
Industrial substratums commonly consist of 90– 99.8% Al ₂ O ₃, with minor enhancements of silica (SiO TWO), magnesia (MgO), or unusual earth oxides utilized as sintering aids to advertise densification and control grain development throughout high-temperature handling.
Greater pureness qualities (e.g., 99.5% and over) exhibit premium electric resistivity and thermal conductivity, while lower pureness variations (90– 96%) offer affordable options for less demanding applications.
1.2 Microstructure and Problem Engineering for Electronic Dependability
The performance of alumina substratums in digital systems is critically depending on microstructural harmony and problem reduction.
A penalty, equiaxed grain framework– usually varying from 1 to 10 micrometers– makes sure mechanical honesty and minimizes the chance of split proliferation under thermal or mechanical anxiety.
Porosity, particularly interconnected or surface-connected pores, should be lessened as it deteriorates both mechanical strength and dielectric efficiency.
Advanced handling strategies such as tape casting, isostatic pressing, and regulated sintering in air or managed environments enable the production of substrates with near-theoretical thickness (> 99.5%) and surface roughness below 0.5 µm, crucial for thin-film metallization and wire bonding.
Furthermore, contamination segregation at grain limits can cause leakage currents or electrochemical migration under prejudice, demanding rigorous control over resources purity and sintering problems to make sure long-lasting dependability in damp or high-voltage environments.
2. Production Processes and Substratum Manufacture Technologies

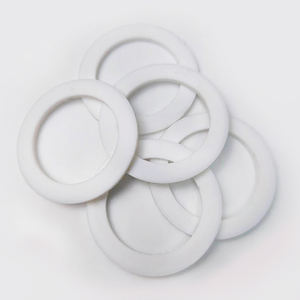

( Alumina Ceramic Substrates)
2.1 Tape Casting and Eco-friendly Body Processing
The production of alumina ceramic substratums starts with the prep work of a very dispersed slurry including submicron Al ₂ O three powder, natural binders, plasticizers, dispersants, and solvents.
This slurry is processed using tape casting– a continual method where the suspension is spread over a relocating carrier film utilizing a precision doctor blade to accomplish consistent thickness, usually in between 0.1 mm and 1.0 mm.
After solvent dissipation, the resulting “eco-friendly tape” is adaptable and can be punched, pierced, or laser-cut to develop through holes for vertical interconnections.
Several layers might be laminated to produce multilayer substrates for intricate circuit combination, although the majority of commercial applications use single-layer configurations due to set you back and thermal expansion considerations.
The environment-friendly tapes are then very carefully debound to eliminate natural additives with controlled thermal disintegration prior to last sintering.
2.2 Sintering and Metallization for Circuit Integration
Sintering is performed in air at temperature levels between 1550 ° C and 1650 ° C, where solid-state diffusion drives pore removal and grain coarsening to attain complete densification.
The straight contraction during sintering– typically 15– 20%– must be precisely predicted and made up for in the style of environment-friendly tapes to make sure dimensional accuracy of the last substrate.
Complying with sintering, metallization is related to create conductive traces, pads, and vias.
2 primary techniques control: thick-film printing and thin-film deposition.
In thick-film technology, pastes containing steel powders (e.g., tungsten, molybdenum, or silver-palladium alloys) are screen-printed onto the substratum and co-fired in a minimizing atmosphere to form durable, high-adhesion conductors.
For high-density or high-frequency applications, thin-film procedures such as sputtering or evaporation are made use of to down payment attachment layers (e.g., titanium or chromium) adhered to by copper or gold, allowing sub-micron pattern via photolithography.
Vias are filled with conductive pastes and terminated to establish electric affiliations between layers in multilayer designs.
3. Useful Properties and Performance Metrics in Electronic Equipment
3.1 Thermal and Electrical Behavior Under Operational Stress
Alumina substratums are prized for their favorable combination of modest thermal conductivity (20– 35 W/m · K for 96– 99.8% Al Two O THREE), which makes it possible for efficient heat dissipation from power gadgets, and high quantity resistivity (> 10 ¹⁴ Ω · cm), making sure minimal leakage current.
Their dielectric consistent (εᵣ ≈ 9– 10 at 1 MHz) is secure over a large temperature level and regularity array, making them appropriate for high-frequency circuits as much as numerous ghzs, although lower-κ materials like light weight aluminum nitride are favored for mm-wave applications.
The coefficient of thermal expansion (CTE) of alumina (~ 6.8– 7.2 ppm/K) is reasonably well-matched to that of silicon (~ 3 ppm/K) and particular product packaging alloys, decreasing thermo-mechanical stress and anxiety throughout gadget operation and thermal cycling.
However, the CTE mismatch with silicon remains a concern in flip-chip and straight die-attach arrangements, usually calling for compliant interposers or underfill materials to alleviate tiredness failure.
3.2 Mechanical Robustness and Environmental Sturdiness
Mechanically, alumina substratums exhibit high flexural strength (300– 400 MPa) and exceptional dimensional stability under load, allowing their use in ruggedized electronic devices for aerospace, automobile, and industrial control systems.
They are resistant to vibration, shock, and creep at elevated temperatures, keeping architectural integrity approximately 1500 ° C in inert atmospheres.
In humid environments, high-purity alumina reveals very little wetness absorption and exceptional resistance to ion migration, making certain long-lasting integrity in exterior and high-humidity applications.
Surface firmness likewise secures against mechanical damage throughout handling and assembly, although treatment has to be taken to stay clear of side breaking due to inherent brittleness.
4. Industrial Applications and Technological Influence Across Sectors
4.1 Power Electronics, RF Modules, and Automotive Equipments
Alumina ceramic substrates are ubiquitous in power electronic modules, including protected gateway bipolar transistors (IGBTs), MOSFETs, and rectifiers, where they give electric isolation while facilitating warm transfer to warm sinks.
In radio frequency (RF) and microwave circuits, they serve as carrier systems for hybrid integrated circuits (HICs), surface acoustic wave (SAW) filters, and antenna feed networks as a result of their stable dielectric properties and reduced loss tangent.
In the auto industry, alumina substratums are utilized in engine control systems (ECUs), sensing unit bundles, and electric car (EV) power converters, where they withstand high temperatures, thermal cycling, and direct exposure to harsh fluids.
Their integrity under severe conditions makes them essential for safety-critical systems such as anti-lock braking (ABDOMINAL) and progressed vehicle driver support systems (ADAS).
4.2 Clinical Devices, Aerospace, and Arising Micro-Electro-Mechanical Systems
Beyond consumer and industrial electronic devices, alumina substratums are used in implantable medical gadgets such as pacemakers and neurostimulators, where hermetic securing and biocompatibility are extremely important.
In aerospace and defense, they are made use of in avionics, radar systems, and satellite communication components as a result of their radiation resistance and security in vacuum cleaner atmospheres.
Furthermore, alumina is increasingly made use of as a structural and shielding platform in micro-electro-mechanical systems (MEMS), including stress sensors, accelerometers, and microfluidic gadgets, where its chemical inertness and compatibility with thin-film processing are advantageous.
As digital systems continue to demand higher power thickness, miniaturization, and reliability under extreme conditions, alumina ceramic substratums remain a keystone material, connecting the void in between efficiency, cost, and manufacturability in innovative digital packaging.
