Alumina Ceramic Tubes: High-Performance Inorganic Conduits for Extreme Environment Applications boron nitride machinable ceramic
1. Product Features and Architectural Layout
1.1 Composition and Crystalline Phases of Alumina

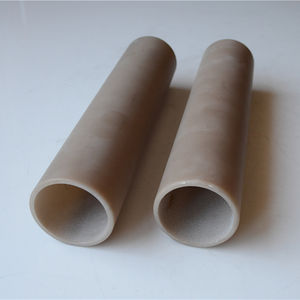

( Alumina Ceramic Tubes)
Alumina (Al ₂ O SIX) ceramic tubes are primarily produced from high-purity light weight aluminum oxide, with pureness levels commonly ranging from 90% to 99.8%, depending on the desired application.
The leading crystalline stage in completely dense, high-temperature sintered tubes is α-alumina (corundum), which shows a trigonal crystal framework and extraordinary thermodynamic security.
This phase shift from precursor hydroxides (e.g., boehmite or gibbsite) to α-alumina occurs above 1100 ° C and leads to a thick, interlocking microstructure that offers outstanding mechanical strength and chemical resistance.
Higher purity qualities (≥ 99.5%) optimize firmness, use resistance, and dielectric performance, while lower-purity formulas may incorporate secondary stages like mullite or glazed grain limit stages to lower expense or dressmaker thermal development.
The capacity to regulate grain dimension, porosity, and stage composition throughout processing enables engineers to tweak alumina tubes for details practical demands across varied industrial domain names.
1.2 Mechanical, Thermal, and Electric Quality
Alumina ceramic tubes exhibit an one-of-a-kind mix of physical residential properties that make them crucial popular design atmospheres.
With a Vickers hardness surpassing 1500 HV, they are very immune to abrasion and erosion, surpassing most metals and polymers in wear-prone systems.
Their compressive stamina can reach 2000 MPa, enabling architectural usage under high mechanical lots, while flexural stamina normally varies from 300 to 500 MPa, relying on thickness and surface coating.
Thermally, alumina keeps security up to 1700 ° C in oxidizing environments, with a reduced coefficient of thermal development (~ 8 ppm/K), contributing to outstanding thermal shock resistance when properly created.
Although its thermal conductivity (~ 30 W/(m · K)) is moderate compared to metals or light weight aluminum nitride, it is sufficient for lots of high-temperature applications where electrical insulation and architectural integrity are prioritized.
Electrically, alumina is an exceptional insulator with quantity resistivity > 10 ¹⁴ Ω · centimeters and high dielectric strength (> 15 kV/mm), making it perfect for electric feedthroughs, sensing unit real estates, and high-voltage insulation.
( Alumina Ceramic Tubes)
2. Manufacturing Processes and Dimensional Control
2.1 Forming and Developing Techniques
The production of alumina ceramic tubes includes sophisticated developing methods tailored to attain precise measurements, wall thickness uniformity, and surface top quality.
Usual techniques include extrusion, isostatic pushing, and slip spreading, each matched to different dimension arrays and performance demands.
Extrusion is extensively used for long, straight tubes with constant cross-sections, where a plasticized alumina paste is compelled with a die and cut to length prior to drying and sintering.
For high-precision or thin-walled tubes, cool isostatic pushing (CIP) uses uniform stress from all instructions to small environment-friendly bodies, minimizing distortion and boosting density homogeneity.
Slide casting, involving the deposition of a colloidal alumina suspension (slip) onto a porous plaster mold and mildew, is suitable for complex or large-diameter geometries with variable wall thickness.
After forming, tubes undertake careful drying out to avoid fracturing, complied with by binder exhaustion and high-temperature sintering (1500– 1650 ° C )to achieve complete densification and dimensional security.
2.2 Finishing and Quality Control
Post-sintering procedures such as centerless grinding, splashing, and brightening are used to attain limited resistances, smooth surface finishes, and exact inner and external sizes.
Tolerances as limited as ± 0.01 mm are possible for vital applications in semiconductor processing or logical instrumentation.
Surface roughness can be decreased to Ra < 0.1 µm, reducing fragment trapping and improving compatibility with ultra-high vacuum (UHV) or cleanroom environments.
Non-destructive screening methods– consisting of ultrasonic examination, X-ray radiography, and dye penetrant testing– make certain architectural integrity and absence of splits or voids.
Dimensional metrology making use of coordinate measuring machines (CMM) or laser scanning verifies compliance with design specifications, specifically for custom-made or high-volume manufacturing runs.
3. Useful Performance in Harsh Environments
3.1 Resistance to Thermal and Chemical Destruction
Among one of the most engaging advantages of alumina ceramic tubes is their capability to hold up against extreme thermal and chemical conditions where metals and polymers stop working.
They remain dimensionally steady and mechanically durable in constant solution at temperature levels above 1500 ° C, making them ideal for heater linings, thermocouple defense sheaths, and radiant heating unit tubes.
Their inertness to molten metals (e.g., light weight aluminum, zinc, and non-ferrous alloys), liquified salts, and many acids (except hydrofluoric and warm phosphoric acid) allows use in metallurgical and chemical processing equipment.
In oxidizing and reducing ambiences, alumina does not break down or catalyze undesirable reactions, preserving procedure purity in semiconductor and glass manufacturing.
This chemical inertness additionally stops contamination in high-purity liquid managing systems, including those used in pharmaceutical and food processing markets.
3.2 Electric Insulation and Plasma Resistance
In electric and plasma atmospheres, alumina tubes function as protecting barriers that keep circuit honesty under high voltage and elevated temperature.
They are made use of in high-intensity discharge (HID) lights, where they contain ionized gases at temperature levels going beyond 1000 ° C while enduring electrical possibilities of a number of kilovolts.
In plasma etching and deposition systems, alumina tubes work as dielectric windows or gas circulation components, resisting ion bombardment and thermal cycling without splitting or outgassing.
Their reduced dielectric loss and high arc resistance protect against electric tracking and breakdown, ensuring long life span in switchgear and power transmission parts.
These homes are critical in preserving process security and tools dependability in advanced production and power systems.
4. Industrial and Emerging Applications
4.1 High-Temperature and Commercial Handling Systems
Alumina ceramic tubes are integral to a large range of commercial processes that require toughness under extreme problems.
In thermal handling, they act as protective sheaths for thermocouples and heating elements in kilns, furnaces, and warm treatment tools, protecting sensitive components from harsh environments and mechanical wear.
In fluid handling, they carry aggressive chemicals, slurries, and high-temperature gases in petrochemical refineries, desalination plants, and waste incineration systems.
Their resistance to thermal shock allows rapid heating and cooling cycles without failure, a crucial advantage in cyclic industrial procedures.
In glass manufacturing, alumina tubes direct molten glass flows and support developing devices, standing up to disintegration from viscous, high-temperature thaws.
4.2 Advanced Technologies and Future Combination
Past traditional industrial usages, alumina tubes are locating brand-new roles in sophisticated innovations.
In semiconductor construction, ultra-pure alumina tubes are utilized in chemical vapor deposition (CVD) reactors and ion implantation systems, where particle generation and metal contamination have to be reduced.
In clinical devices, biocompatible alumina tubes serve as protecting elements in medical tools, dental implants, and diagnostic sensors.
Research study is exploring functionalized alumina tubes with embedded sensors or conductive traces for wise structural monitoring in aerospace and power systems.
Additive production (3D printing) of alumina is becoming a technique to create intricate tube geometries with interior networks or graded structures, allowing next-generation warm exchangers and microreactors.
As markets press toward higher effectiveness, cleaner procedures, and greater reliability, alumina ceramic tubes remain to develop as enabling parts in the facilities of modern-day technology.
In summary, alumina ceramic tubes represent a fully grown yet dynamically progressing class of engineered products, incorporating exceptional thermal, mechanical, and electrical efficiency in a single not natural channel.
Their convenience throughout severe atmospheres guarantees their ongoing relevance in both developed industrial systems and emerging high-tech applications.
