Aluminum Nitride Ceramic Substrates: Enabling High-Power Electronics Through Superior Thermal Management ceramic plates for dinner
1. Material Science and Structural Properties
1.1 Crystal Structure and Chemical Stability

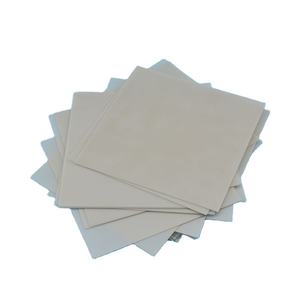

(Aluminum Nitride Ceramic Substrates)
Light weight aluminum nitride (AlN) is a broad bandgap semiconductor ceramic with a hexagonal wurtzite crystal structure, composed of alternating layers of light weight aluminum and nitrogen atoms adhered with solid covalent communications.
This robust atomic plan grants AlN with phenomenal thermal stability, keeping structural stability approximately 2200 ° C in inert ambiences and withstanding decomposition under severe thermal cycling.
Unlike alumina (Al two O FOUR), AlN is chemically inert to molten steels and several responsive gases, making it suitable for extreme settings such as semiconductor handling chambers and high-temperature heaters.
Its high resistance to oxidation– creating just a thin safety Al two O ₃ layer at surface upon direct exposure to air– makes sure lasting integrity without substantial deterioration of bulk residential properties.
Additionally, AlN shows superb electrical insulation with a resistivity going beyond 10 ¹ⴠΩ · centimeters and a dielectric strength over 30 kV/mm, essential for high-voltage applications.
1.2 Thermal Conductivity and Electronic Attributes
The most specifying attribute of aluminum nitride is its exceptional thermal conductivity, typically varying from 140 to 180 W/(m · K )for commercial-grade substrates– over five times greater than that of alumina (≈ 30 W/(m · K)).
This performance comes from the low atomic mass of nitrogen and light weight aluminum, integrated with strong bonding and very little point flaws, which permit reliable phonon transportation via the latticework.
Nevertheless, oxygen impurities are particularly detrimental; also trace quantities (over 100 ppm) replacement for nitrogen websites, producing aluminum vacancies and scattering phonons, therefore drastically decreasing thermal conductivity.
High-purity AlN powders synthesized via carbothermal decrease or direct nitridation are necessary to attain ideal warmth dissipation.
Despite being an electric insulator, AlN’s piezoelectric and pyroelectric residential properties make it important in sensing units and acoustic wave gadgets, while its large bandgap (~ 6.2 eV) sustains operation in high-power and high-frequency digital systems.
2. Fabrication Processes and Production Obstacles
( Aluminum Nitride Ceramic Substrates)
2.1 Powder Synthesis and Sintering Techniques
Making high-performance AlN substratums begins with the synthesis of ultra-fine, high-purity powder, frequently attained through responses such as Al Two O SIX + 3C + N ₂ → 2AlN + 3CO (carbothermal reduction) or straight nitridation of aluminum steel: 2Al + N TWO → 2AlN.
The resulting powder has to be thoroughly crushed and doped with sintering aids like Y TWO O TWO, CaO, or unusual planet oxides to advertise densification at temperature levels between 1700 ° C and 1900 ° C under nitrogen atmosphere.
These ingredients form transient fluid phases that enhance grain boundary diffusion, allowing complete densification (> 99% theoretical density) while decreasing oxygen contamination.
Post-sintering annealing in carbon-rich environments can even more reduce oxygen content by getting rid of intergranular oxides, therefore bring back peak thermal conductivity.
Attaining uniform microstructure with regulated grain size is crucial to balance mechanical toughness, thermal performance, and manufacturability.
2.2 Substrate Forming and Metallization
As soon as sintered, AlN ceramics are precision-ground and splashed to fulfill tight dimensional resistances needed for digital packaging, often to micrometer-level flatness.
Through-hole boring, laser cutting, and surface pattern make it possible for combination into multilayer plans and crossbreed circuits.
A vital action in substrate construction is metallization– the application of conductive layers (usually tungsten, molybdenum, or copper) using processes such as thick-film printing, thin-film sputtering, or straight bonding of copper (DBC).
For DBC, copper aluminum foils are adhered to AlN surfaces at raised temperature levels in a regulated environment, creating a solid interface ideal for high-current applications.
Alternative techniques like energetic steel brazing (AMB) use titanium-containing solders to enhance adhesion and thermal exhaustion resistance, specifically under duplicated power cycling.
Proper interfacial engineering makes certain reduced thermal resistance and high mechanical integrity in running devices.
3. Efficiency Advantages in Electronic Systems
3.1 Thermal Monitoring in Power Electronic Devices
AlN substrates master taking care of warmth created by high-power semiconductor tools such as IGBTs, MOSFETs, and RF amplifiers utilized in electrical cars, renewable resource inverters, and telecommunications facilities.
Efficient heat extraction avoids local hotspots, lowers thermal stress and anxiety, and expands gadget life time by mitigating electromigration and delamination dangers.
Contrasted to conventional Al â‚‚ O five substratums, AlN makes it possible for smaller sized plan sizes and greater power densities because of its superior thermal conductivity, allowing developers to press performance boundaries without jeopardizing reliability.
In LED lights and laser diodes, where junction temperature directly impacts efficiency and color stability, AlN substrates substantially enhance luminescent result and functional life-span.
Its coefficient of thermal development (CTE ≈ 4.5 ppm/K) additionally very closely matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), reducing thermo-mechanical anxiety during thermal biking.
3.2 Electric and Mechanical Dependability
Beyond thermal performance, AlN offers reduced dielectric loss (tan δ < 0.0005) and steady permittivity (εᵣ ≈ 8.9) throughout a broad regularity variety, making it suitable for high-frequency microwave and millimeter-wave circuits.
Its hermetic nature stops wetness ingress, getting rid of corrosion threats in moist environments– a key advantage over organic substratums.
Mechanically, AlN has high flexural stamina (300– 400 MPa) and firmness (HV ≈ 1200), making sure durability throughout handling, setting up, and field operation.
These characteristics collectively contribute to enhanced system integrity, lowered failure rates, and lower complete expense of ownership in mission-critical applications.
4. Applications and Future Technological Frontiers
4.1 Industrial, Automotive, and Defense Equipments
AlN ceramic substratums are now typical in sophisticated power modules for commercial motor drives, wind and solar inverters, and onboard battery chargers in electrical and hybrid vehicles.
In aerospace and defense, they sustain radar systems, electronic warfare systems, and satellite interactions, where performance under extreme conditions is non-negotiable.
Medical imaging tools, including X-ray generators and MRI systems, likewise gain from AlN’s radiation resistance and signal honesty.
As electrification trends speed up across transport and energy industries, demand for AlN substratums continues to expand, driven by the need for small, reliable, and trusted power electronics.
4.2 Arising Combination and Lasting Advancement
Future developments focus on integrating AlN right into three-dimensional product packaging styles, ingrained passive components, and heterogeneous combination platforms integrating Si, SiC, and GaN devices.
Study right into nanostructured AlN movies and single-crystal substrates aims to more boost thermal conductivity towards academic limits (> 300 W/(m · K)) for next-generation quantum and optoelectronic devices.
Efforts to reduce production expenses with scalable powder synthesis, additive production of intricate ceramic frameworks, and recycling of scrap AlN are gaining momentum to enhance sustainability.
Additionally, modeling devices using finite element analysis (FEA) and artificial intelligence are being utilized to maximize substrate layout for specific thermal and electric tons.
Finally, aluminum nitride ceramic substratums represent a keystone innovation in modern electronics, distinctly connecting the void between electric insulation and extraordinary thermal transmission.
Their duty in allowing high-efficiency, high-reliability power systems highlights their tactical importance in the continuous advancement of electronic and power modern technologies.
