Boron Carbide Ceramics: The Ultra-Hard, Lightweight Material at the Frontier of Ballistic Protection and Neutron Absorption Technologies alumina al2o3
1. Basic Chemistry and Crystallographic Style of Boron Carbide
1.1 Molecular Composition and Structural Intricacy

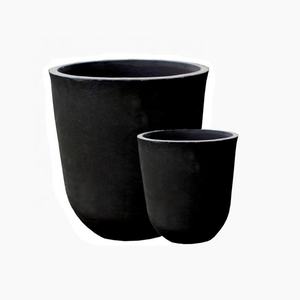

(Boron Carbide Ceramic)
Boron carbide (B ₄ C) stands as one of one of the most interesting and technically essential ceramic materials due to its special mix of severe firmness, low density, and remarkable neutron absorption capability.
Chemically, it is a non-stoichiometric substance mostly composed of boron and carbon atoms, with an idyllic formula of B ₄ C, though its real composition can vary from B ₄ C to B ₁₀. ₅ C, reflecting a wide homogeneity array governed by the substitution systems within its complicated crystal latticework.
The crystal framework of boron carbide comes from the rhombohedral system (room group R3̄m), identified by a three-dimensional network of 12-atom icosahedra– clusters of boron atoms– connected by direct C-B-C or C-C chains along the trigonal axis.
These icosahedra, each containing 11 boron atoms and 1 carbon atom (B ₁₁ C), are covalently bound with incredibly solid B– B, B– C, and C– C bonds, adding to its exceptional mechanical rigidity and thermal stability.
The visibility of these polyhedral devices and interstitial chains introduces architectural anisotropy and inherent flaws, which influence both the mechanical behavior and electronic homes of the product.
Unlike easier ceramics such as alumina or silicon carbide, boron carbide’s atomic style permits significant configurational versatility, making it possible for problem formation and cost distribution that affect its performance under anxiety and irradiation.
1.2 Physical and Electronic Properties Emerging from Atomic Bonding
The covalent bonding network in boron carbide leads to among the highest known solidity worths among artificial products– 2nd only to ruby and cubic boron nitride– usually ranging from 30 to 38 GPa on the Vickers firmness range.
Its density is extremely reduced (~ 2.52 g/cm TWO), making it about 30% lighter than alumina and almost 70% lighter than steel, a vital advantage in weight-sensitive applications such as personal armor and aerospace parts.
Boron carbide exhibits exceptional chemical inertness, resisting attack by many acids and alkalis at area temperature level, although it can oxidize over 450 ° C in air, creating boric oxide (B TWO O SIX) and co2, which might compromise architectural honesty in high-temperature oxidative settings.
It possesses a vast bandgap (~ 2.1 eV), identifying it as a semiconductor with possible applications in high-temperature electronic devices and radiation detectors.
Additionally, its high Seebeck coefficient and low thermal conductivity make it a candidate for thermoelectric power conversion, specifically in severe environments where traditional materials stop working.
(Boron Carbide Ceramic)
The product also shows phenomenal neutron absorption as a result of the high neutron capture cross-section of the ¹⁰ B isotope (roughly 3837 barns for thermal neutrons), providing it indispensable in nuclear reactor control poles, securing, and invested gas storage space systems.
2. Synthesis, Handling, and Difficulties in Densification
2.1 Industrial Manufacturing and Powder Fabrication Methods
Boron carbide is primarily produced through high-temperature carbothermal decrease of boric acid (H FOUR BO ₃) or boron oxide (B TWO O TWO) with carbon resources such as oil coke or charcoal in electrical arc furnaces running over 2000 ° C.
The response proceeds as: 2B ₂ O ₃ + 7C → B FOUR C + 6CO, yielding crude, angular powders that call for comprehensive milling to accomplish submicron bit dimensions suitable for ceramic processing.
Different synthesis routes include self-propagating high-temperature synthesis (SHS), laser-induced chemical vapor deposition (CVD), and plasma-assisted techniques, which provide much better control over stoichiometry and bit morphology yet are less scalable for industrial use.
Due to its severe hardness, grinding boron carbide right into fine powders is energy-intensive and susceptible to contamination from milling media, requiring making use of boron carbide-lined mills or polymeric grinding help to maintain pureness.
The resulting powders need to be carefully classified and deagglomerated to guarantee uniform packing and effective sintering.
2.2 Sintering Limitations and Advanced Consolidation Approaches
A significant obstacle in boron carbide ceramic manufacture is its covalent bonding nature and reduced self-diffusion coefficient, which badly restrict densification throughout conventional pressureless sintering.
Also at temperature levels approaching 2200 ° C, pressureless sintering commonly yields ceramics with 80– 90% of academic density, leaving recurring porosity that deteriorates mechanical strength and ballistic performance.
To overcome this, advanced densification methods such as warm pressing (HP) and warm isostatic pressing (HIP) are employed.
Warm pushing uses uniaxial stress (commonly 30– 50 MPa) at temperatures between 2100 ° C and 2300 ° C, advertising bit rearrangement and plastic deformation, making it possible for densities surpassing 95%.
HIP better enhances densification by applying isostatic gas stress (100– 200 MPa) after encapsulation, removing closed pores and achieving near-full thickness with improved fracture durability.
Ingredients such as carbon, silicon, or change metal borides (e.g., TiB TWO, CrB ₂) are occasionally presented in small quantities to boost sinterability and prevent grain development, though they may somewhat lower hardness or neutron absorption performance.
Despite these breakthroughs, grain boundary weak point and inherent brittleness stay persistent difficulties, particularly under vibrant loading conditions.
3. Mechanical Actions and Efficiency Under Extreme Loading Issues
3.1 Ballistic Resistance and Failing Systems
Boron carbide is widely identified as a premier material for light-weight ballistic defense in body armor, automobile plating, and aircraft securing.
Its high firmness allows it to efficiently wear down and warp inbound projectiles such as armor-piercing bullets and pieces, dissipating kinetic power with mechanisms consisting of crack, microcracking, and local stage makeover.
However, boron carbide exhibits a sensation known as “amorphization under shock,” where, under high-velocity impact (generally > 1.8 km/s), the crystalline structure falls down into a disordered, amorphous phase that lacks load-bearing ability, leading to devastating failing.
This pressure-induced amorphization, observed using in-situ X-ray diffraction and TEM researches, is attributed to the failure of icosahedral systems and C-B-C chains under extreme shear anxiety.
Initiatives to alleviate this consist of grain refinement, composite style (e.g., B ₄ C-SiC), and surface covering with ductile steels to delay fracture breeding and have fragmentation.
3.2 Wear Resistance and Commercial Applications
Beyond defense, boron carbide’s abrasion resistance makes it perfect for commercial applications entailing severe wear, such as sandblasting nozzles, water jet reducing ideas, and grinding media.
Its solidity significantly surpasses that of tungsten carbide and alumina, leading to prolonged life span and minimized upkeep prices in high-throughput production atmospheres.
Elements made from boron carbide can run under high-pressure rough circulations without fast degradation, although treatment should be taken to prevent thermal shock and tensile tensions during operation.
Its use in nuclear environments likewise includes wear-resistant components in gas handling systems, where mechanical durability and neutron absorption are both needed.
4. Strategic Applications in Nuclear, Aerospace, and Emerging Technologies
4.1 Neutron Absorption and Radiation Protecting Equipments
Among one of the most crucial non-military applications of boron carbide remains in nuclear energy, where it functions as a neutron-absorbing material in control rods, closure pellets, and radiation protecting structures.
As a result of the high abundance of the ¹⁰ B isotope (normally ~ 20%, but can be improved to > 90%), boron carbide successfully captures thermal neutrons using the ¹⁰ B(n, α)⁷ Li response, producing alpha fragments and lithium ions that are conveniently contained within the product.
This response is non-radioactive and generates very little long-lived byproducts, making boron carbide much safer and much more secure than alternatives like cadmium or hafnium.
It is used in pressurized water activators (PWRs), boiling water reactors (BWRs), and research study reactors, frequently in the type of sintered pellets, clad tubes, or composite panels.
Its stability under neutron irradiation and capacity to preserve fission items enhance activator safety and security and functional longevity.
4.2 Aerospace, Thermoelectrics, and Future Material Frontiers
In aerospace, boron carbide is being explored for usage in hypersonic car leading sides, where its high melting factor (~ 2450 ° C), reduced thickness, and thermal shock resistance deal benefits over metallic alloys.
Its possibility in thermoelectric tools comes from its high Seebeck coefficient and reduced thermal conductivity, enabling direct conversion of waste heat right into power in severe settings such as deep-space probes or nuclear-powered systems.
Research study is also underway to establish boron carbide-based compounds with carbon nanotubes or graphene to enhance strength and electrical conductivity for multifunctional structural electronic devices.
Furthermore, its semiconductor homes are being leveraged in radiation-hardened sensors and detectors for area and nuclear applications.
In recap, boron carbide porcelains represent a keystone product at the junction of extreme mechanical performance, nuclear design, and advanced manufacturing.
Its unique combination of ultra-high hardness, reduced thickness, and neutron absorption ability makes it irreplaceable in defense and nuclear technologies, while recurring research study remains to broaden its energy into aerospace, power conversion, and next-generation compounds.
As processing methods improve and brand-new composite styles emerge, boron carbide will certainly remain at the forefront of materials innovation for the most requiring technological obstacles.
