Power chips are attached to external circuits through product packaging, and their performance depends upon the support of the packaging. In high-power circumstances, power chips are typically packaged as power modules. Chip affiliation describes the electric link on the top surface area of the chip, which is normally aluminum bonding cord in conventional components. ^
Conventional power component plan cross-section
At present, industrial silicon carbide power modules still primarily utilize the packaging modern technology of this wire-bonded traditional silicon IGBT component. They face problems such as huge high-frequency parasitic criteria, insufficient heat dissipation ability, low-temperature resistance, and not enough insulation strength, which restrict making use of silicon carbide semiconductors. The display of exceptional efficiency. In order to solve these issues and completely manipulate the huge prospective benefits of silicon carbide chips, several brand-new packaging technologies and services for silicon carbide power modules have arised in recent years.
Silicon carbide power module bonding technique

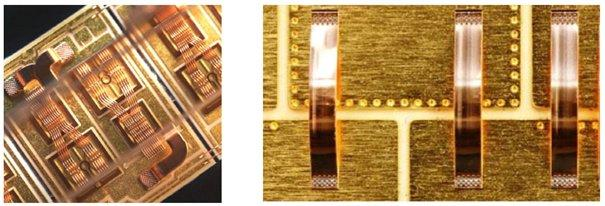

(Figure (a) Wire bonding and (b) Cu Clip power module structure diagram (left) copper wire and (right) copper strip connection process)
Bonding products have created from gold cord bonding in 2001 to aluminum cord (tape) bonding in 2006, copper cord bonding in 2011, and Cu Clip bonding in 2016. Low-power devices have actually created from gold wires to copper cables, and the driving force is expense decrease; high-power devices have actually established from light weight aluminum cables (strips) to Cu Clips, and the driving force is to boost product efficiency. The greater the power, the higher the needs.
Cu Clip is copper strip, copper sheet. Clip Bond, or strip bonding, is a packaging procedure that utilizes a strong copper bridge soldered to solder to link chips and pins. Compared with typical bonding packaging methods, Cu Clip technology has the complying with advantages:
1. The link in between the chip and the pins is made of copper sheets, which, to a particular extent, changes the common cable bonding technique between the chip and the pins. As a result, an one-of-a-kind bundle resistance worth, greater existing flow, and much better thermal conductivity can be acquired.
2. The lead pin welding area does not need to be silver-plated, which can completely conserve the expense of silver plating and inadequate silver plating.
3. The product look is completely regular with typical items and is mostly utilized in web servers, mobile computer systems, batteries/drives, graphics cards, motors, power supplies, and various other fields.
Cu Clip has two bonding approaches.
All copper sheet bonding approach
Both eviction pad and the Source pad are clip-based. This bonding approach is extra costly and complicated, however it can accomplish much better Rdson and better thermal effects.
( copper strip)
Copper sheet plus cable bonding technique
The resource pad uses a Clip approach, and the Gate utilizes a Cord technique. This bonding approach is slightly cheaper than the all-copper bonding technique, saving wafer location (appropriate to very little gateway areas). The process is less complex than the all-copper bonding method and can get much better Rdson and better thermal impact.
