Alumina Ceramics: Bridging the Gap Between Structural Integrity and Functional Versatility in Modern Engineering alumina to aluminum
1. The Material Structure and Crystallographic Identity of Alumina Ceramics
1.1 Atomic Design and Stage Stability

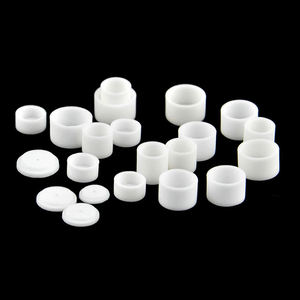

(Alumina Ceramics)
Alumina ceramics, mainly made up of aluminum oxide (Al ₂ O THREE), represent one of one of the most extensively used courses of sophisticated ceramics because of their remarkable equilibrium of mechanical stamina, thermal durability, and chemical inertness.
At the atomic degree, the efficiency of alumina is rooted in its crystalline framework, with the thermodynamically stable alpha phase (α-Al ₂ O SIX) being the dominant kind made use of in engineering applications.
This phase adopts a rhombohedral crystal system within the hexagonal close-packed (HCP) latticework, where oxygen anions create a thick arrangement and aluminum cations inhabit two-thirds of the octahedral interstitial sites.
The resulting structure is highly secure, adding to alumina’s high melting factor of about 2072 ° C and its resistance to disintegration under extreme thermal and chemical conditions.
While transitional alumina phases such as gamma (γ), delta (δ), and theta (θ) exist at reduced temperatures and exhibit higher surface areas, they are metastable and irreversibly change right into the alpha phase upon heating above 1100 ° C, making α-Al ₂ O ₃ the unique stage for high-performance architectural and functional components.
1.2 Compositional Grading and Microstructural Design
The buildings of alumina ceramics are not dealt with but can be customized through managed variants in pureness, grain dimension, and the enhancement of sintering help.
High-purity alumina (≥ 99.5% Al Two O TWO) is used in applications demanding optimum mechanical strength, electrical insulation, and resistance to ion diffusion, such as in semiconductor handling and high-voltage insulators.
Lower-purity grades (ranging from 85% to 99% Al ₂ O TWO) usually include additional stages like mullite (3Al two O THREE · 2SiO ₂) or glassy silicates, which improve sinterability and thermal shock resistance at the expense of hardness and dielectric performance.
An essential factor in efficiency optimization is grain dimension control; fine-grained microstructures, attained via the enhancement of magnesium oxide (MgO) as a grain growth inhibitor, significantly improve crack toughness and flexural toughness by restricting fracture breeding.
Porosity, even at low levels, has a harmful impact on mechanical honesty, and completely thick alumina porcelains are generally generated by means of pressure-assisted sintering techniques such as hot pushing or warm isostatic pushing (HIP).
The interaction in between make-up, microstructure, and processing defines the practical envelope within which alumina porcelains operate, allowing their usage across a huge spectrum of industrial and technological domain names.
( Alumina Ceramics)
2. Mechanical and Thermal Efficiency in Demanding Environments
2.1 Stamina, Hardness, and Wear Resistance
Alumina ceramics show an unique mix of high firmness and modest fracture strength, making them excellent for applications involving abrasive wear, erosion, and effect.
With a Vickers hardness typically ranging from 15 to 20 GPa, alumina rankings among the hardest engineering materials, exceeded only by ruby, cubic boron nitride, and certain carbides.
This extreme solidity converts into exceptional resistance to damaging, grinding, and fragment impingement, which is made use of in parts such as sandblasting nozzles, reducing devices, pump seals, and wear-resistant liners.
Flexural strength values for thick alumina range from 300 to 500 MPa, relying on pureness and microstructure, while compressive toughness can exceed 2 GPa, permitting alumina elements to hold up against high mechanical lots without deformation.
In spite of its brittleness– a typical characteristic amongst ceramics– alumina’s efficiency can be maximized with geometric layout, stress-relief attributes, and composite reinforcement methods, such as the consolidation of zirconia fragments to cause transformation toughening.
2.2 Thermal Behavior and Dimensional Security
The thermal residential properties of alumina ceramics are central to their usage in high-temperature and thermally cycled environments.
With a thermal conductivity of 20– 30 W/m · K– more than the majority of polymers and equivalent to some metals– alumina efficiently dissipates heat, making it ideal for heat sinks, insulating substrates, and heating system parts.
Its reduced coefficient of thermal growth (~ 8 × 10 ⁻⁶/ K) makes certain marginal dimensional adjustment during cooling and heating, lowering the risk of thermal shock breaking.
This security is particularly useful in applications such as thermocouple defense tubes, ignition system insulators, and semiconductor wafer dealing with systems, where specific dimensional control is crucial.
Alumina preserves its mechanical honesty as much as temperatures of 1600– 1700 ° C in air, past which creep and grain boundary gliding may initiate, relying on pureness and microstructure.
In vacuum cleaner or inert atmospheres, its efficiency extends also additionally, making it a favored product for space-based instrumentation and high-energy physics experiments.
3. Electric and Dielectric Features for Advanced Technologies
3.1 Insulation and High-Voltage Applications
One of one of the most considerable practical qualities of alumina ceramics is their exceptional electrical insulation capability.
With a volume resistivity going beyond 10 ¹⁴ Ω · centimeters at space temperature level and a dielectric toughness of 10– 15 kV/mm, alumina functions as a trusted insulator in high-voltage systems, consisting of power transmission equipment, switchgear, and digital product packaging.
Its dielectric consistent (εᵣ ≈ 9– 10 at 1 MHz) is relatively secure across a large frequency variety, making it ideal for usage in capacitors, RF parts, and microwave substrates.
Reduced dielectric loss (tan δ < 0.0005) ensures very little energy dissipation in rotating current (AC) applications, boosting system effectiveness and minimizing warm generation.
In published circuit card (PCBs) and crossbreed microelectronics, alumina substrates give mechanical support and electrical isolation for conductive traces, allowing high-density circuit combination in extreme atmospheres.
3.2 Performance in Extreme and Delicate Settings
Alumina ceramics are distinctively matched for use in vacuum cleaner, cryogenic, and radiation-intensive environments as a result of their reduced outgassing rates and resistance to ionizing radiation.
In fragment accelerators and blend reactors, alumina insulators are made use of to separate high-voltage electrodes and diagnostic sensing units without presenting pollutants or degrading under long term radiation exposure.
Their non-magnetic nature additionally makes them optimal for applications involving strong magnetic fields, such as magnetic vibration imaging (MRI) systems and superconducting magnets.
Additionally, alumina’s biocompatibility and chemical inertness have actually resulted in its adoption in medical gadgets, consisting of dental implants and orthopedic elements, where lasting security and non-reactivity are extremely important.
4. Industrial, Technological, and Arising Applications
4.1 Function in Industrial Machinery and Chemical Handling
Alumina porcelains are thoroughly utilized in commercial devices where resistance to use, deterioration, and heats is essential.
Parts such as pump seals, valve seats, nozzles, and grinding media are commonly fabricated from alumina as a result of its capability to endure abrasive slurries, aggressive chemicals, and elevated temperatures.
In chemical processing plants, alumina cellular linings shield reactors and pipes from acid and alkali assault, prolonging tools life and lowering upkeep expenses.
Its inertness likewise makes it ideal for use in semiconductor manufacture, where contamination control is important; alumina chambers and wafer boats are exposed to plasma etching and high-purity gas atmospheres without leaching pollutants.
4.2 Integration into Advanced Manufacturing and Future Technologies
Beyond standard applications, alumina ceramics are playing a significantly important duty in emerging innovations.
In additive manufacturing, alumina powders are used in binder jetting and stereolithography (SHANTY TOWN) refines to make facility, high-temperature-resistant parts for aerospace and power systems.
Nanostructured alumina films are being discovered for catalytic assistances, sensing units, and anti-reflective finishes due to their high surface and tunable surface chemistry.
Additionally, alumina-based compounds, such as Al Two O ₃-ZrO Two or Al Two O ₃-SiC, are being created to get rid of the inherent brittleness of monolithic alumina, offering boosted strength and thermal shock resistance for next-generation architectural materials.
As markets continue to press the limits of efficiency and dependability, alumina ceramics remain at the leading edge of material advancement, bridging the space in between structural robustness and functional adaptability.
In recap, alumina porcelains are not merely a course of refractory products but a keystone of modern engineering, allowing technological development across power, electronic devices, medical care, and industrial automation.
Their unique mix of residential or commercial properties– rooted in atomic structure and fine-tuned through innovative handling– guarantees their continued importance in both established and emerging applications.
As material science develops, alumina will undoubtedly continue to be an essential enabler of high-performance systems running at the edge of physical and ecological extremes.
5. Supplier
Alumina Technology Co., Ltd focus on the research and development, production and sales of aluminum oxide powder, aluminum oxide products, aluminum oxide crucible, etc., serving the electronics, ceramics, chemical and other industries. Since its establishment in 2005, the company has been committed to providing customers with the best products and services. If you are looking for high quality alumina to aluminum, please feel free to contact us. (nanotrun@yahoo.com)
