Aerogel Coatings: Engineering Ultra-Lightweight, High-Performance Thermal and Functional Barriers at the Nanoscale aerogel car coating
1. Fundamental Scientific Research and Nanoarchitectural Style of Aerogel Coatings
1.1 The Origin and Definition of Aerogel-Based Coatings

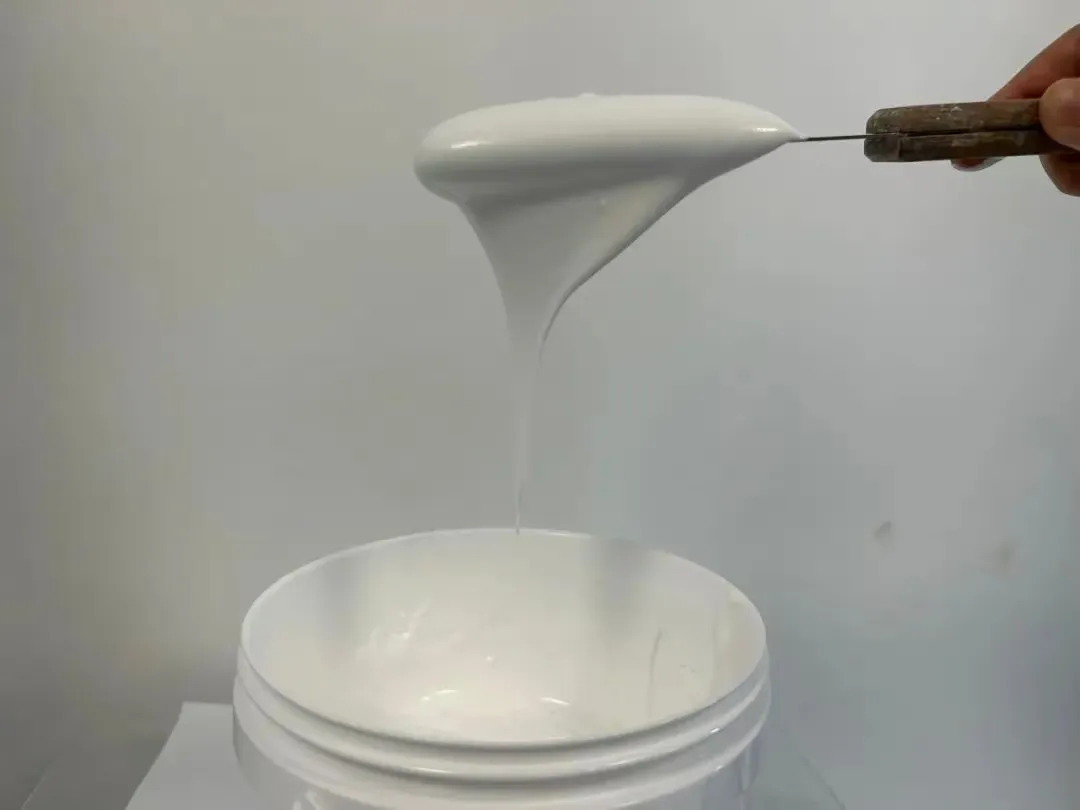

(Aerogel Coatings)
Aerogel coverings stand for a transformative course of useful products stemmed from the broader household of aerogels– ultra-porous, low-density solids renowned for their outstanding thermal insulation, high area, and nanoscale architectural hierarchy.
Unlike standard monolithic aerogels, which are usually delicate and difficult to incorporate right into complicated geometries, aerogel finishes are applied as slim movies or surface layers on substrates such as metals, polymers, textiles, or building materials.
These coverings maintain the core residential or commercial properties of mass aerogels– especially their nanoscale porosity and low thermal conductivity– while using improved mechanical resilience, adaptability, and simplicity of application through methods like splashing, dip-coating, or roll-to-roll handling.
The primary constituent of the majority of aerogel finishes is silica (SiO â‚‚), although crossbreed systems integrating polymers, carbon, or ceramic precursors are significantly used to customize performance.
The defining function of aerogel finishings is their nanostructured network, usually made up of interconnected nanoparticles developing pores with sizes below 100 nanometers– smaller sized than the mean totally free path of air molecules.
This building restraint successfully reduces aeriform transmission and convective warm transfer, making aerogel finishes among the most effective thermal insulators recognized.
1.2 Synthesis Paths and Drying Systems
The fabrication of aerogel coatings begins with the development of a wet gel network via sol-gel chemistry, where molecular precursors such as tetraethyl orthosilicate (TEOS) undertake hydrolysis and condensation responses in a fluid medium to create a three-dimensional silica network.
This process can be fine-tuned to regulate pore dimension, particle morphology, and cross-linking density by changing parameters such as pH, water-to-precursor ratio, and catalyst kind.
When the gel network is formed within a thin film setup on a substratum, the crucial challenge lies in getting rid of the pore liquid without falling down the fragile nanostructure– a problem historically attended to through supercritical drying.
In supercritical drying, the solvent (usually alcohol or carbon monoxide TWO) is heated and pressurized beyond its crucial point, eliminating the liquid-vapor user interface and protecting against capillary stress-induced shrinking.
While efficient, this approach is energy-intensive and much less ideal for large-scale or in-situ layer applications.
( Aerogel Coatings)
To overcome these restrictions, advancements in ambient pressure drying out (APD) have made it possible for the manufacturing of robust aerogel coatings without requiring high-pressure equipment.
This is attained with surface area adjustment of the silica network using silylating agents (e.g., trimethylchlorosilane), which change surface hydroxyl groups with hydrophobic moieties, decreasing capillary pressures throughout evaporation.
The resulting finishings preserve porosities surpassing 90% and densities as low as 0.1– 0.3 g/cm SIX, protecting their insulative performance while allowing scalable manufacturing.
2. Thermal and Mechanical Efficiency Characteristics
2.1 Exceptional Thermal Insulation and Heat Transfer Suppression
One of the most well known residential property of aerogel coatings is their ultra-low thermal conductivity, typically varying from 0.012 to 0.020 W/m · K at ambient conditions– similar to still air and significantly lower than conventional insulation materials like polyurethane (0.025– 0.030 W/m · K )or mineral woollen (0.035– 0.040 W/m · K).
This efficiency comes from the triad of warm transfer reductions mechanisms fundamental in the nanostructure: very little solid conduction because of the sporadic network of silica ligaments, minimal gaseous conduction as a result of Knudsen diffusion in sub-100 nm pores, and reduced radiative transfer with doping or pigment enhancement.
In useful applications, also thin layers (1– 5 mm) of aerogel layer can accomplish thermal resistance (R-value) equal to much thicker conventional insulation, allowing space-constrained styles in aerospace, developing envelopes, and portable tools.
Additionally, aerogel coverings exhibit steady performance across a wide temperature level variety, from cryogenic problems (-200 ° C )to moderate heats (approximately 600 ° C for pure silica systems), making them ideal for severe environments.
Their reduced emissivity and solar reflectance can be further enhanced via the consolidation of infrared-reflective pigments or multilayer styles, boosting radiative securing in solar-exposed applications.
2.2 Mechanical Resilience and Substratum Compatibility
Despite their severe porosity, modern aerogel coverings exhibit unusual mechanical effectiveness, specifically when strengthened with polymer binders or nanofibers.
Hybrid organic-inorganic formulas, such as those combining silica aerogels with acrylics, epoxies, or polysiloxanes, improve flexibility, attachment, and effect resistance, permitting the layer to endure resonance, thermal biking, and small abrasion.
These hybrid systems preserve good insulation efficiency while achieving elongation at break worths up to 5– 10%, protecting against breaking under pressure.
Bond to varied substrates– steel, aluminum, concrete, glass, and versatile foils– is accomplished with surface priming, chemical combining representatives, or in-situ bonding during healing.
Furthermore, aerogel layers can be crafted to be hydrophobic or superhydrophobic, repelling water and avoiding dampness ingress that might degrade insulation performance or advertise deterioration.
This combination of mechanical longevity and ecological resistance boosts longevity in outdoor, marine, and industrial settings.
3. Functional Versatility and Multifunctional Assimilation
3.1 Acoustic Damping and Audio Insulation Capabilities
Past thermal management, aerogel layers demonstrate significant potential in acoustic insulation as a result of their open-pore nanostructure, which dissipates audio power through thick losses and interior friction.
The tortuous nanopore network hampers the breeding of acoustic waves, particularly in the mid-to-high frequency array, making aerogel finishings reliable in decreasing sound in aerospace cabins, automobile panels, and building wall surfaces.
When incorporated with viscoelastic layers or micro-perforated strugglings with, aerogel-based systems can attain broadband sound absorption with minimal included weight– a vital advantage in weight-sensitive applications.
This multifunctionality makes it possible for the style of incorporated thermal-acoustic barriers, minimizing the requirement for numerous different layers in complicated settings up.
3.2 Fire Resistance and Smoke Suppression Feature
Aerogel coatings are inherently non-combustible, as silica-based systems do not contribute fuel to a fire and can withstand temperature levels well over the ignition points of typical construction and insulation products.
When related to combustible substratums such as wood, polymers, or textiles, aerogel coverings work as a thermal obstacle, delaying warm transfer and pyrolysis, consequently enhancing fire resistance and enhancing retreat time.
Some solutions include intumescent additives or flame-retardant dopants (e.g., phosphorus or boron compounds) that broaden upon heating, forming a protective char layer that even more protects the underlying material.
In addition, unlike several polymer-based insulations, aerogel layers generate marginal smoke and no harmful volatiles when revealed to high warmth, boosting safety in enclosed settings such as tunnels, ships, and high-rise buildings.
4. Industrial and Arising Applications Throughout Sectors
4.1 Energy Performance in Building and Industrial Systems
Aerogel finishes are reinventing easy thermal administration in style and infrastructure.
Applied to home windows, walls, and roofs, they decrease home heating and cooling down tons by decreasing conductive and radiative heat exchange, contributing to net-zero energy structure styles.
Transparent aerogel layers, particularly, allow daylight transmission while obstructing thermal gain, making them optimal for skylights and drape wall surfaces.
In commercial piping and tank, aerogel-coated insulation lowers energy loss in steam, cryogenic, and process fluid systems, improving functional performance and decreasing carbon emissions.
Their thin account permits retrofitting in space-limited areas where conventional cladding can not be set up.
4.2 Aerospace, Defense, and Wearable Innovation Assimilation
In aerospace, aerogel coatings safeguard sensitive parts from extreme temperature level fluctuations during climatic re-entry or deep-space missions.
They are made use of in thermal security systems (TPS), satellite housings, and astronaut suit linings, where weight cost savings directly convert to decreased launch costs.
In defense applications, aerogel-coated materials offer light-weight thermal insulation for personnel and devices in arctic or desert environments.
Wearable modern technology benefits from adaptable aerogel compounds that maintain body temperature in smart garments, outside gear, and clinical thermal policy systems.
Additionally, study is discovering aerogel finishings with ingrained sensors or phase-change materials (PCMs) for flexible, receptive insulation that adjusts to ecological conditions.
To conclude, aerogel finishings exhibit the power of nanoscale engineering to fix macro-scale obstacles in energy, safety, and sustainability.
By combining ultra-low thermal conductivity with mechanical flexibility and multifunctional capacities, they are redefining the restrictions of surface area design.
As manufacturing costs lower and application approaches come to be extra effective, aerogel coatings are poised to become a standard product in next-generation insulation, protective systems, and smart surface areas throughout industries.
