Silica Sol: Colloidal Nanoparticles Bridging Materials Science and Industrial Innovation na2 sio2
1. Principles of Silica Sol Chemistry and Colloidal Stability
1.1 Structure and Particle Morphology
(Silica Sol)

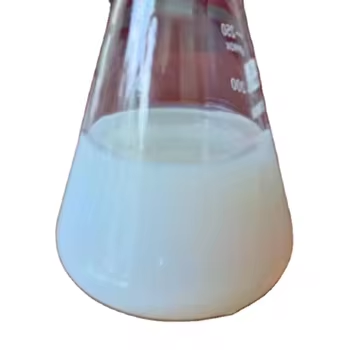

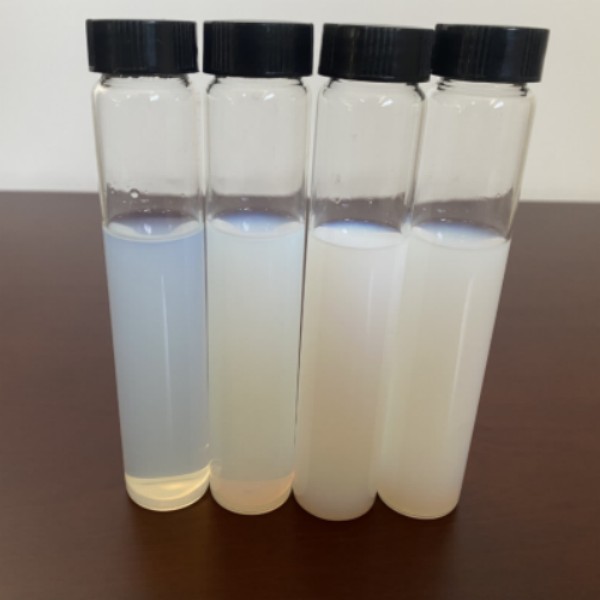

Silica sol is a secure colloidal dispersion consisting of amorphous silicon dioxide (SiO TWO) nanoparticles, generally varying from 5 to 100 nanometers in size, suspended in a fluid phase– most generally water.
These nanoparticles are made up of a three-dimensional network of SiO â‚„ tetrahedra, creating a permeable and very reactive surface area abundant in silanol (Si– OH) teams that regulate interfacial habits.
The sol state is thermodynamically metastable, maintained by electrostatic repulsion between charged bits; surface fee occurs from the ionization of silanol groups, which deprotonate over pH ~ 2– 3, yielding negatively billed particles that push back each other.
Bit form is usually spherical, though synthesis conditions can influence gathering tendencies and short-range ordering.
The high surface-area-to-volume ratio– commonly going beyond 100 m ²/ g– makes silica sol incredibly reactive, enabling strong communications with polymers, steels, and organic particles.
1.2 Stabilization Devices and Gelation Change
Colloidal stability in silica sol is mostly controlled by the equilibrium in between van der Waals appealing forces and electrostatic repulsion, described by the DLVO (Derjaguin– Landau– Verwey– Overbeek) concept.
At low ionic stamina and pH values over the isoelectric factor (~ pH 2), the zeta potential of fragments is completely negative to avoid aggregation.
Nevertheless, addition of electrolytes, pH adjustment towards neutrality, or solvent evaporation can evaluate surface charges, decrease repulsion, and set off particle coalescence, leading to gelation.
Gelation involves the formation of a three-dimensional network with siloxane (Si– O– Si) bond development between surrounding particles, transforming the liquid sol right into a stiff, permeable xerogel upon drying out.
This sol-gel change is reversible in some systems yet commonly causes irreversible architectural adjustments, forming the basis for advanced ceramic and composite construction.
2. Synthesis Pathways and Process Control
( Silica Sol)
2.1 Stöber Method and Controlled Development
The most widely identified method for creating monodisperse silica sol is the Sțber procedure, created in 1968, which entails the hydrolysis and condensation of alkoxysilanesРnormally tetraethyl orthosilicate (TEOS)Рin an alcoholic medium with aqueous ammonia as a catalyst.
By exactly regulating parameters such as water-to-TEOS ratio, ammonia focus, solvent composition, and response temperature level, particle size can be tuned reproducibly from ~ 10 nm to over 1 µm with narrow size circulation.
The device proceeds using nucleation adhered to by diffusion-limited development, where silanol teams condense to develop siloxane bonds, developing the silica framework.
This technique is suitable for applications needing consistent spherical fragments, such as chromatographic supports, calibration criteria, and photonic crystals.
2.2 Acid-Catalyzed and Biological Synthesis Paths
Alternative synthesis techniques include acid-catalyzed hydrolysis, which favors direct condensation and leads to even more polydisperse or aggregated bits, commonly made use of in industrial binders and finishings.
Acidic conditions (pH 1– 3) promote slower hydrolysis however faster condensation in between protonated silanols, leading to irregular or chain-like structures.
More recently, bio-inspired and green synthesis approaches have actually emerged, making use of silicatein enzymes or plant removes to precipitate silica under ambient conditions, lowering energy consumption and chemical waste.
These sustainable methods are getting passion for biomedical and environmental applications where purity and biocompatibility are critical.
Additionally, industrial-grade silica sol is commonly produced through ion-exchange procedures from sodium silicate remedies, followed by electrodialysis to eliminate alkali ions and support the colloid.
3. Functional Features and Interfacial Habits
3.1 Surface Reactivity and Modification Strategies
The surface of silica nanoparticles in sol is controlled by silanol groups, which can take part in hydrogen bonding, adsorption, and covalent implanting with organosilanes.
Surface alteration utilizing coupling agents such as 3-aminopropyltriethoxysilane (APTES) or methyltrimethoxysilane introduces functional teams (e.g.,– NH TWO,– CH SIX) that change hydrophilicity, reactivity, and compatibility with organic matrices.
These adjustments make it possible for silica sol to act as a compatibilizer in hybrid organic-inorganic composites, enhancing diffusion in polymers and improving mechanical, thermal, or barrier homes.
Unmodified silica sol exhibits solid hydrophilicity, making it suitable for liquid systems, while customized variations can be spread in nonpolar solvents for specialized finishes and inks.
3.2 Rheological and Optical Characteristics
Silica sol dispersions generally display Newtonian flow habits at low concentrations, however viscosity rises with fragment loading and can change to shear-thinning under high solids material or partial gathering.
This rheological tunability is made use of in finishes, where controlled circulation and progressing are essential for consistent movie development.
Optically, silica sol is transparent in the noticeable range because of the sub-wavelength size of fragments, which decreases light scattering.
This transparency allows its usage in clear coatings, anti-reflective movies, and optical adhesives without compromising aesthetic clearness.
When dried out, the resulting silica movie retains transparency while offering solidity, abrasion resistance, and thermal security up to ~ 600 ° C.
4. Industrial and Advanced Applications
4.1 Coatings, Composites, and Ceramics
Silica sol is thoroughly utilized in surface finishings for paper, textiles, steels, and building and construction materials to enhance water resistance, scratch resistance, and toughness.
In paper sizing, it improves printability and dampness barrier residential properties; in shop binders, it changes natural materials with eco-friendly not natural options that disintegrate cleanly throughout spreading.
As a precursor for silica glass and ceramics, silica sol makes it possible for low-temperature fabrication of thick, high-purity parts using sol-gel processing, avoiding the high melting point of quartz.
It is also employed in investment casting, where it creates strong, refractory molds with fine surface coating.
4.2 Biomedical, Catalytic, and Power Applications
In biomedicine, silica sol works as a system for medicine shipment systems, biosensors, and diagnostic imaging, where surface area functionalization permits targeted binding and regulated launch.
Mesoporous silica nanoparticles (MSNs), derived from templated silica sol, provide high loading ability and stimuli-responsive release mechanisms.
As a stimulant support, silica sol gives a high-surface-area matrix for immobilizing steel nanoparticles (e.g., Pt, Au, Pd), enhancing dispersion and catalytic efficiency in chemical changes.
In power, silica sol is used in battery separators to improve thermal security, in fuel cell membrane layers to boost proton conductivity, and in solar panel encapsulants to shield versus moisture and mechanical tension.
In summary, silica sol represents a fundamental nanomaterial that bridges molecular chemistry and macroscopic capability.
Its controllable synthesis, tunable surface area chemistry, and flexible processing make it possible for transformative applications throughout sectors, from sustainable manufacturing to advanced health care and power systems.
As nanotechnology progresses, silica sol remains to function as a model system for developing smart, multifunctional colloidal products.
