1. Basic Make-up and Structural Style of Quartz Ceramics
1.1 Crystalline vs. Fused Silica: Defining the Material Course

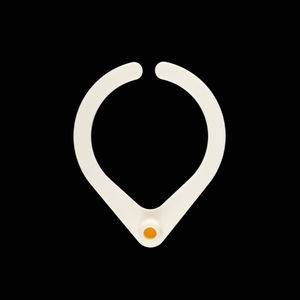

(Transparent Ceramics)
Quartz ceramics, additionally called merged quartz or merged silica ceramics, are advanced not natural materials derived from high-purity crystalline quartz (SiO ₂) that undergo regulated melting and debt consolidation to develop a dense, non-crystalline (amorphous) or partially crystalline ceramic structure.
Unlike traditional ceramics such as alumina or zirconia, which are polycrystalline and made up of multiple stages, quartz porcelains are mostly composed of silicon dioxide in a network of tetrahedrally worked with SiO four units, providing outstanding chemical pureness– typically exceeding 99.9% SiO TWO.
The difference between fused quartz and quartz ceramics lies in processing: while fused quartz is generally a totally amorphous glass formed by quick air conditioning of liquified silica, quartz ceramics might entail controlled crystallization (devitrification) or sintering of fine quartz powders to attain a fine-grained polycrystalline or glass-ceramic microstructure with boosted mechanical toughness.
This hybrid technique incorporates the thermal and chemical security of fused silica with improved crack sturdiness and dimensional security under mechanical lots.
1.2 Thermal and Chemical Stability Mechanisms
The extraordinary efficiency of quartz porcelains in severe atmospheres stems from the strong covalent Si– O bonds that develop a three-dimensional connect with high bond energy (~ 452 kJ/mol), giving impressive resistance to thermal deterioration and chemical assault.
These materials display an exceptionally low coefficient of thermal growth– around 0.55 × 10 ⁻⁶/ K over the variety 20– 300 ° C– making them extremely immune to thermal shock, a critical quality in applications including rapid temperature level cycling.
They maintain architectural honesty from cryogenic temperature levels up to 1200 ° C in air, and even greater in inert atmospheres, prior to softening begins around 1600 ° C.
Quartz ceramics are inert to many acids, consisting of hydrochloric, nitric, and sulfuric acids, as a result of the security of the SiO two network, although they are vulnerable to strike by hydrofluoric acid and strong alkalis at elevated temperatures.
This chemical strength, combined with high electric resistivity and ultraviolet (UV) openness, makes them optimal for usage in semiconductor processing, high-temperature heaters, and optical systems subjected to severe conditions.
2. Manufacturing Processes and Microstructural Control

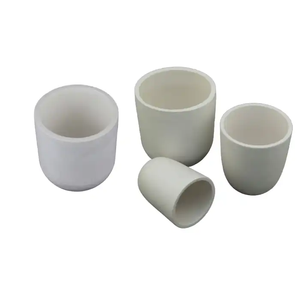

( Transparent Ceramics)
2.1 Melting, Sintering, and Devitrification Pathways
The production of quartz ceramics involves sophisticated thermal handling techniques developed to protect pureness while accomplishing preferred density and microstructure.
One common method is electric arc melting of high-purity quartz sand, complied with by controlled air conditioning to develop fused quartz ingots, which can then be machined into components.
For sintered quartz porcelains, submicron quartz powders are compacted via isostatic pushing and sintered at temperature levels in between 1100 ° C and 1400 ° C, commonly with very little ingredients to advertise densification without inducing too much grain growth or phase makeover.
A crucial obstacle in processing is preventing devitrification– the spontaneous formation of metastable silica glass right into cristobalite or tridymite phases– which can compromise thermal shock resistance as a result of quantity changes throughout stage changes.
Producers use precise temperature control, fast cooling cycles, and dopants such as boron or titanium to subdue undesirable formation and keep a secure amorphous or fine-grained microstructure.
2.2 Additive Manufacturing and Near-Net-Shape Construction
Recent developments in ceramic additive production (AM), particularly stereolithography (SLA) and binder jetting, have made it possible for the manufacture of intricate quartz ceramic parts with high geometric accuracy.
In these processes, silica nanoparticles are put on hold in a photosensitive resin or precisely bound layer-by-layer, complied with by debinding and high-temperature sintering to achieve complete densification.
This strategy minimizes product waste and permits the development of complex geometries– such as fluidic channels, optical dental caries, or warmth exchanger aspects– that are hard or impossible to accomplish with traditional machining.
Post-processing methods, including chemical vapor seepage (CVI) or sol-gel finish, are in some cases put on secure surface area porosity and enhance mechanical and environmental resilience.
These developments are increasing the application extent of quartz porcelains right into micro-electromechanical systems (MEMS), lab-on-a-chip devices, and personalized high-temperature components.
3. Functional Characteristics and Efficiency in Extreme Environments
3.1 Optical Openness and Dielectric Actions
Quartz ceramics show one-of-a-kind optical homes, consisting of high transmission in the ultraviolet, visible, and near-infrared spectrum (from ~ 180 nm to 2500 nm), making them crucial in UV lithography, laser systems, and space-based optics.
This openness occurs from the lack of electronic bandgap changes in the UV-visible range and very little scattering due to homogeneity and low porosity.
In addition, they have excellent dielectric residential properties, with a reduced dielectric constant (~ 3.8 at 1 MHz) and marginal dielectric loss, enabling their use as shielding components in high-frequency and high-power electronic systems, such as radar waveguides and plasma activators.
Their capability to keep electrical insulation at elevated temperature levels better improves dependability in demanding electrical environments.
3.2 Mechanical Actions and Long-Term Durability
In spite of their high brittleness– a common trait among porcelains– quartz porcelains demonstrate great mechanical toughness (flexural toughness up to 100 MPa) and exceptional creep resistance at heats.
Their hardness (around 5.5– 6.5 on the Mohs range) gives resistance to surface abrasion, although treatment needs to be taken throughout handling to avoid chipping or fracture proliferation from surface defects.
Environmental toughness is another essential advantage: quartz ceramics do not outgas substantially in vacuum, resist radiation damages, and keep dimensional security over long term direct exposure to thermal cycling and chemical atmospheres.
This makes them favored materials in semiconductor construction chambers, aerospace sensing units, and nuclear instrumentation where contamination and failure need to be decreased.
4. Industrial, Scientific, and Arising Technological Applications
4.1 Semiconductor and Photovoltaic Production Solutions
In the semiconductor market, quartz porcelains are ubiquitous in wafer processing tools, consisting of furnace tubes, bell containers, susceptors, and shower heads made use of in chemical vapor deposition (CVD) and plasma etching.
Their pureness stops metal contamination of silicon wafers, while their thermal stability makes certain consistent temperature level circulation throughout high-temperature handling steps.
In solar manufacturing, quartz elements are made use of in diffusion furnaces and annealing systems for solar cell manufacturing, where constant thermal accounts and chemical inertness are important for high return and efficiency.
The need for larger wafers and greater throughput has actually driven the growth of ultra-large quartz ceramic structures with boosted homogeneity and decreased defect thickness.
4.2 Aerospace, Protection, and Quantum Innovation Integration
Past commercial handling, quartz ceramics are used in aerospace applications such as missile support windows, infrared domes, and re-entry lorry components because of their capability to withstand severe thermal slopes and wind resistant tension.
In defense systems, their openness to radar and microwave frequencies makes them appropriate for radomes and sensor real estates.
Extra recently, quartz porcelains have actually discovered functions in quantum innovations, where ultra-low thermal expansion and high vacuum cleaner compatibility are needed for accuracy optical cavities, atomic catches, and superconducting qubit units.
Their ability to minimize thermal drift ensures lengthy comprehensibility times and high measurement precision in quantum computing and noticing platforms.
In summary, quartz porcelains represent a course of high-performance products that connect the space between typical ceramics and specialized glasses.
Their exceptional combination of thermal security, chemical inertness, optical openness, and electric insulation makes it possible for technologies operating at the restrictions of temperature level, purity, and precision.
As making techniques evolve and demand grows for materials capable of standing up to increasingly severe conditions, quartz ceramics will certainly continue to play a fundamental function beforehand semiconductor, power, aerospace, and quantum systems.
