Bearings are commonly called the “joints of sector.” Obtaining the choice right directly affects your devices’s reliability, service life, and maintenance expenses. Numerous bearing failings do not originate from low quality– they originate from wrong choices. Things like lots computation errors, overlooking speed limitations, or choosing the wrong lubrication technique. These tiny errors can create tools to damage down early in its service life. This guide walks you through the entire option process, giving engineers and purchase professionals a clear path from evaluating working conditions to validating the right bearing version.
Component One: What You Required to Know Before Beginning
Before you open any type of bearing magazine, ask on your own one inquiry: What exactly does this machine require the birthing to do? The solution depends on 5 essential locations:
1. Lots Qualities
Lots is the primary consider birthing option. You need to identify three things:
Direction: Is it radial load (perpendicular to the shaft), axial load (alongside the shaft), or a combination of both?
Size: Is it light, modest, or heavy? Any type of influence loads?
Nature: Is the lots steady or transforming? Just how often do influence tons take place and how solid are they?
Take a belt conveyor for instance. The bearings at the drive end take on radial lots from belt tension, the weight of the belt and rollers, plus the shaft setting up. When determining, you have to take into consideration different operating problems– startup, regular operating, braking– and utilize the worst-case circumstance for your layout.
2. Rate Conditions
(bearings for steel mill)
Rate is an additional critical factor affecting bearing life. According to tiredness life theory, birthing life has an inverted partnership with speed. For variable rate problems, you need to compute the equivalent speed. Take a rotating kiln support roller– its speed might range from 0.5 to 2.5 r/min. You ‘d require to weight the running time at each rate to obtain a comparable worth.
Something to keep an eye out for: recognizing only the maximum rate can ruin your lubrication strategy. The lubricating substance you choose based on full throttle may not form a correct oil film at lower speeds. Also, if your maker has long still durations, you must point out that– otherwise nearby tools vibrations can cause false brinelling damage.
3. Required Life Span
Birthing life span is generally revealed as L10h (the variety of hours that 90% of a bearing group will get to prior to fatigue spalling appears). A typical error is choosing an extremely long life– as soon as L10h surpasses 100,000 hours, the bearing size obtains as well large. It comes to be tougher to lube, torque rises, and it ends up being extra conscious minimum tons. In the long run, it might stop working for factors apart from fatigue.
4. Area Restraints
You must know your offered room restrictions from the beginning– shaft size variety, real estate birthed size, axial size restrictions. As soon as you recognize the matching shaft size and available room, you can swiftly narrow down your options.
5. Running Accuracy Needs
A lot of applications do simply fine with common accuracy bearings. But for high-speed or high-precision equipment like machine tool spindles, you’ll require P5, P4, and even higher qualities. Simply bear in mind that going for greater accuracy without an actual requirement will certainly increase costs substantially. Suit the quality to your actual requirements.
Part Two: Matching Bearing Types to Working Issues
Once you have those parameters clear, the following action is to match the appropriate bearing type based upon tons direction, dimension, rate, and misalignment resistance.
1. Tons Instructions: Radial, Axial, or Incorporated?
This is one of the most standard filter. It can aim you to a couple of candidates right now:

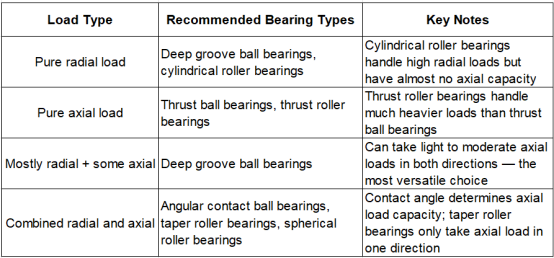

When the axial-to-radial lots proportion (Fa/Fr) changes, your selection logic changes too. At reduced proportions, go with deep groove ball bearings. At moderate proportions, make use of small-contact-angle angular contact bearings or taper roller bearings. At high ratios, you’ll need large-contact-angle bearings, or take into consideration integrating a thrust bearing with a radial bearing.
( Radial)
2. Lots Dimension: Round Bearings or Roller Bearings?
This is a classic choice:
Light or modest lots: Go with ball bearings (deep groove or angular contact). The point call between rounds and raceways offers lower rubbing, making them ideal for tool to high speeds.
Heavy or impact tons: You should use roller bearings (cylindrical, spherical, or taper). Line call in between rollers and raceways offers much greater lots capacity and much better effect resistance.
3. Rate: Round Bearings for High Speed, Roller Bearings for Low
Typically speaking, ball bearings have higher rate limitations than roller bearings. For high-speed applications (above 1000 r/min), put sphere bearings on top of your listing. When you require the highest feasible speed with pure radial tons, open deep groove ball bearings are your best option. For combined loads at broadband, angular get in touch with sphere bearings are the means to go.
Cylindrical roller bearings, taper roller bearings, and needle bearings have relatively reduced speed restrictions. They’re mainly matched for low-to-medium speed, heavy-load problems.
4. Imbalance Tolerance: Do You Required Self-Aligning?
This set usually obtains forgotten yet it’s extremely important. You ought to think about self-aligning bearings when:
Birthing housing bores don’t line up well
The shaft isn’t stiff sufficient and bends throughout operation
The bearing period is long and thermal growth triggers angular imbalance
You’re using different split real estates (like pillow block bearings)
Round roller bearings and spherical ball bearings have concave outer ring raceways. This enables a specific amount of angular misalignment in between the inner and external rings without harmful side tension. They can compensate for both vibrant deflection and static setup errors.
On the various other hand, round roller bearings, taper roller bearings, and needle bearings have very limited self-aligning capacity. Also a small angular misalignment can create tension focus at the roller ends, resulting in high edge stress that dramatically reduce birthing life. Deep groove round bearings do have some self-aligning capacity, yet the allowable angle is small– going beyond it will decrease life also.
5. Axial Growth Payment: Fixed End or Drifting End?
Long shafts broaden and agreement with temperature adjustments throughout operation. That indicates you require to set up your bearing arrangement with one fixed end and one floating end.
NU and N series round roller bearings have no flanges on the inner ring (or on one side). This allows the shaft move freely in the axial direction relative to the housing– making them ideal as floating-end bearings. NJ and NUP collection can supply axial positioning in one or both directions, so they work well as fixed-end bearings. This arrangement is extremely usual in gearboxes and electric motors.
Component 3: BMB Line Of Product at a Look

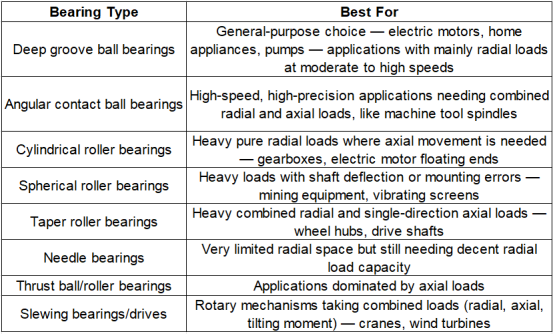

BMB uses a full variety of industrial bearings, covering all the major types we have actually reviewed. This fast recommendation table attaches the selection principles above straight to certain item classifications:
Part 4: Diving Deeper– Accuracy, Clearance, Lubrication, and Seals
( Axial)
1. Accuracy Grades
Standard precision (P0) works for the substantial majority of general equipment. For precision devices like maker device pins or aerospace components, you’ll require P5 or greater. Tighter precision suggests tighter dimensional resistances and far better running precision– yet likewise greater prices.
2. Interior Clearance and Preload
Bearings require to preserve correct interior clearance after installment. Way too much clearance results in resonance and noise. Too little, and thermal development can create the bearing to seize. In grandfather clauses like machine device pins, preload (applying negative clearance) is utilized to enhance system strength and rotational accuracy.
3. Lube Choice
Lubrication is a make-or-break factor for bearing life. Grease helps many moderate-speed and temperature level applications– it’s simple to secure and can run maintenance-free for extended periods. Oil (oil bathroom, oil haze, jet lubrication) is much better for high-speed or high-temperature conditions, as it dissipates heat more effectively. When picking a lube, inspect the rate aspect (ndm worth). Do not just pick based on maximum rate– the oil you pick could not develop an appropriate movie at reduced rates.
4. Securing Arrangements
Choose the seal type based upon your atmosphere: contact seals maintain dust out well yet add some friction; non-contact seals work for high speeds however provide much less protection against contamination; open bearings rely on outside sealing systems.
Part 5: Life Computation– From Concept to Method
( or Combined Basic Filter Table)
At the end of the day, you require to verify whether your chosen bearing will in fact satisfy the expected life span. This is where basic score life estimation comes in.
The fundamental score life L10 formula (ISO 281 requirement):
For ball bearings: L10 = (C/P) FOUR × (10 ⁶/ 60n) hours
For roller bearings: L10 = (C/P)^(10/3) × (10 SIX/ 60n) hours
Where:
C: standard dynamic lots ranking (kN)– discovered in the product magazine
P: comparable dynamic lots (kN)– takes both radial and axial tons into account
The comparable vibrant tons P is calculated as: P = X · Fr + Y · Fa
Fr is the radial load, Fa is the axial load
X and Y are coefficients that depend upon bearing kind and the Fa/Fr proportion– inspect the magazine for these worths
For even more demanding conditions, you can use adjustment variables: Ln = a1 × a2 × a3 × L10
a1 is the integrity aspect (a1 = 1 for 90% integrity, about 0.21 for 99%)
a2 is the product factor (high-grade bearing steel can get to 1.5 to 2)
a3 is the operating problems element (great lubrication and tidiness can provide 2 to 3)
With this estimation, designers can validate that the chosen bearing fulfills the necessary service life. It also helps contrast several choices and make data-driven choices.
This overview has actually strolled you with the total selection course– from evaluating working conditions, to matching the appropriate bearing kind, to validating life span. Comprehending and applying this methodology will certainly assist you make precise, efficient, and cost-efficient bearing choices across a wide range of commercial applications.
